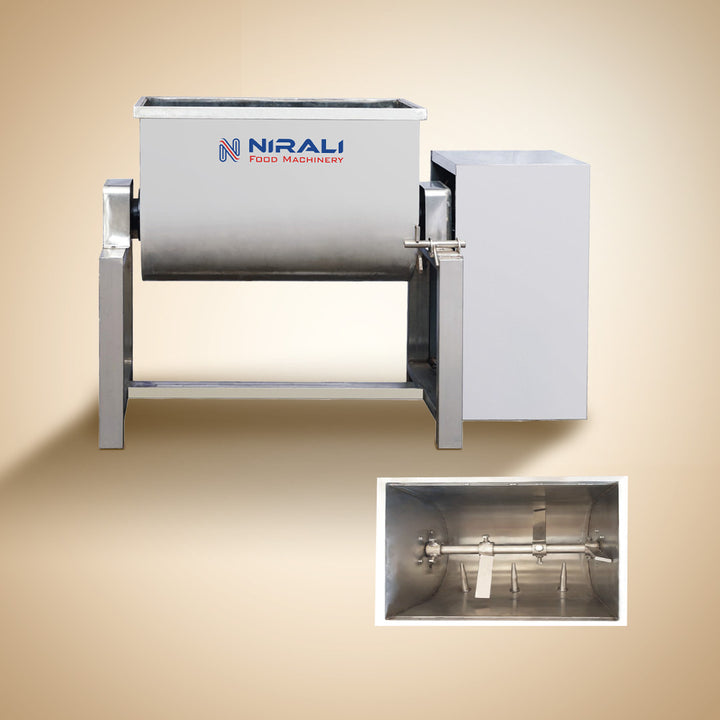

U-Type Atta Mixing Machine

The U-Type Atta Mixing Machine is designed to handle heavy-duty flour mixing for commercial setups. Its distinctive U-shaped drum ensures uniform mixing of atta (flour), maida, or other dry and semi-wet ingredients. Commonly used in food processing units, canteens, commercial kitchens, and snack manufacturing businesses, this machine delivers consistent results across every batch.

Constructed with a robust stainless steel or mild steel body, it features a horizontal shaft fitted with mixing blades that rotate evenly to achieve a smooth blend. The machine reduces manual effort, saves time, and ensures hygiene in large-scale operations.

Specifications – U-Type Atta Mixing Machine

• Body Material: Stainless Steel (S.S.) / Mild Steel (M.S.)

• Mixing Chamber: Horizontal U-shaped drum

• Mixing Blade: Ribbon-type or paddle-type agitator

• Motor Power: 1 HP to 5 HP (based on capacity)

• Capacity: 10 Kg to 100 Kg per batch (custom options available)

• Drive Mechanism: Belt and pulley or direct coupling

• Power Supply: 220V (Single Phase) / 440V (Three Phase)

• Cleaning: Easy-access chamber with manual or auto cleaning option

• Usage: Ideal for atta, maida, besan, spices, namkeen mix, etc.

• Output: Continuous or batch-based (as per design)

• Dimensions & Weight: Depends on model and capacity
